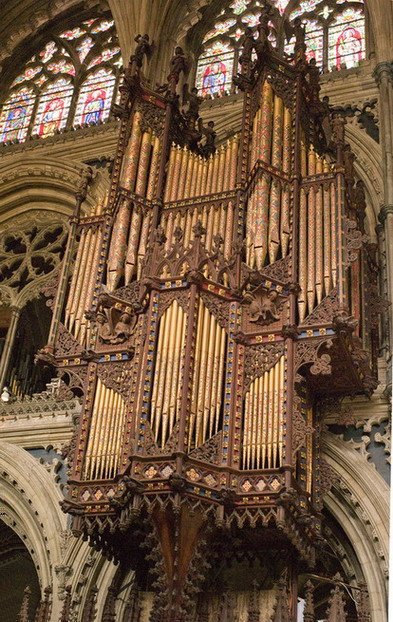

[Holy Trinity Cathedral, Ely]
Orgue principal / Main Organ
Harrison & Harrison, 1908/1931/1975/2001

  • 4 claviers manuels et pédalier (6 divisions) / 4 manuals and pedal (6 divisions)
  • 80 jeux / stops, 93 rangs / ranks
  • Traction électro-pneumatique des claviers / Electro-pneumatic action


Orgue de la chapelle de la Vierge / Lady Chapel Organ
William Hill & Sons, ?

  • 2 claviers manuels et pédalier (6 divisions) / 2 manuals and pedal (6 divisions)
  • 11 jeux / stops, 11 rangs / ranks
  • Traction mécanique des claviers et des jeux / Mechanical key and stop action

[cliquer sur l'image ou ici pour obtenir une version agrandie]
[click on the image or here to obtain a larger picture]


La cathédrale

L'orgue

[cliquer sur l'image ou ici pour obtenir une version agrandie]


The Cathedral

The Organ

[click on the image or here to obtain a larger picture]


Composition sonore / Stop List
Orgue principal / Main Organ

I. Positive

I. Choir

Chimney Flute8' Open Diapason8'
Principal4' Gedackt8'
Spitzflute4' Fiffaro8'
Nazard2 2/3' Unda Maris8'
Blockflute2' Principal4'
Tierce1 3/5' Flauto Traverso4'
Larigot1 1/3' Fifteenth2'
Sharp Mixture 1'IV Flautino1'


Mixture 1 1/3'III


1Cremona8'


Tremulant


II. Great

III. Swell
(expressif / enclosed)

Sub Bourdon32' Bourdon16'
Double Diapason16' Open Diapason8'
Bourdon (ext)16' Gedackt8'
Large Open Diapason8' Echo Gamba8'
Small Open Diapason8' Vox Angelica (TC)8'
Hohl Flute8' Principal4'
Salicional8' Nason Flute4'
Quint5 1/3' Fifteenth2'
Octave4' 1,4Echo CornetII
Principal4' Mixture 2 2/3'V
Wald Flute4' Oboe8'
Double Tierce3 1/5' 1Vox Humana8'
Twelfth2 2/3' Tremulant
Fifteenth2' Double Trumpet16'
1,3SesquialteraIII Trumpet8'
Fourniture 2'V Clarion4'
Cymbale 1'V

1Trombone16'

1Trumpet8'

1Clarion4'



IV. Solo
(expressif / enclosed)

Pedal

Contra Viola16' Double Open Wood (ext)32'
Viole d'orchestre8' Sub Bourdon (GT)32'
Viole céleste8' Open Wood (ext)16'
Viole octaviante4' Open Diapason (GT)16'
Cornet de ViolesIII Bourdon (ext)16'
Harmonic Flute8' Violone (Solo)16'
Concert Flute4' Principal8'
Clarinet16' Flute (ext)8'
Orchestral Hautboy8' Violoncelle (ext)8'
Cor anglais8' Fifteenth4'
Tremulant
Octave Flute (ext)4'
2Tuba8' Mixture 1 1/3'IV
1,2Orchestral Trumpet8' Bombardon (ext)32'


Bombardon (ext)32'


Bombarde16'


Trumpet (ext)8'



Composition sonore / Stop List
Orgue de la chapelle de la Vierge / Lady Chapel Organ

I. Great

II. Swell

Open Diapason8' Open Diapason (TC)8'
Stopped Diapason8' Hohl Flute8'
Dulciana (TC)8' Gemshorn4'
Principal4' Oboe8'
Flute (TC)4'

Flautina2'



Pedal

Bourdon16'
