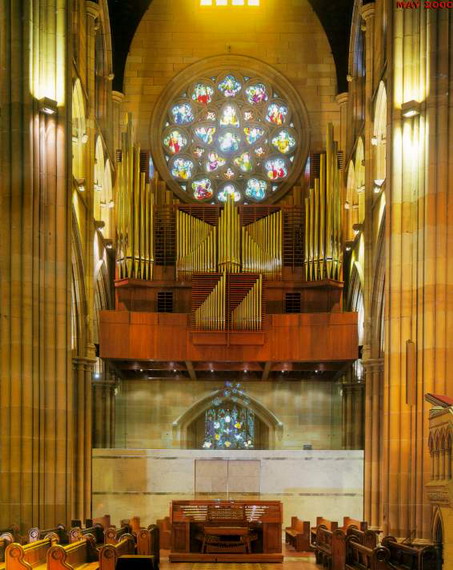

[St. Mary's Cathedral, Sydney]
Orgue de transept / Transept Organ

Létourneau, 1999

  • 3 claviers manuels et pédalier / 3 manuals and pedal
  • 46 jeux / stops, 59 rangs / ranks, 3327 tuyaux / pipes
  • Traction mécanique et électrique des claviers / Mechanical and electric key action
  • Traction électrique des jeux / Electric stop action

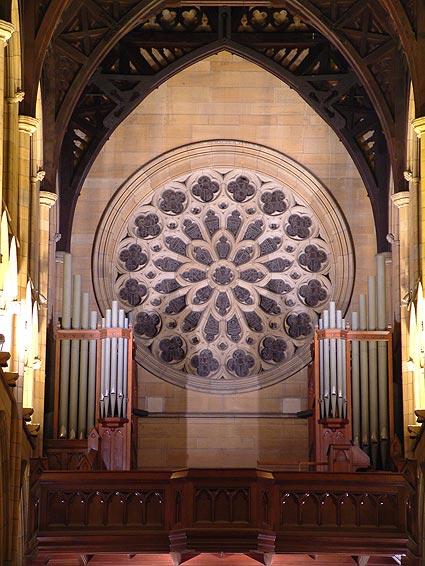

[St. Mary's Cathedral, Sydney]
Orgue de tribune / Gallery Organ

Whitehouse, 1942

  • 2 claviers manuels et pédalier / 2 manuals and pedal
  • 27 jeux / stops, 22 rangs / ranks
  • Traction électrique des claviers et des jeux / Electric key and stop action


Orgue de choeur / Chancel Organ

Sharp, 1959-1971

  • 2 claviers manuels et pédalier / 2 manuals and pedal
  • 16 jeux / stops, 23 rangs / ranks
  • Traction électro-pneumatique des claviers et des jeux / Electro-pneumatic key and stop action
[St. Mary's Cathedral, Sydney]

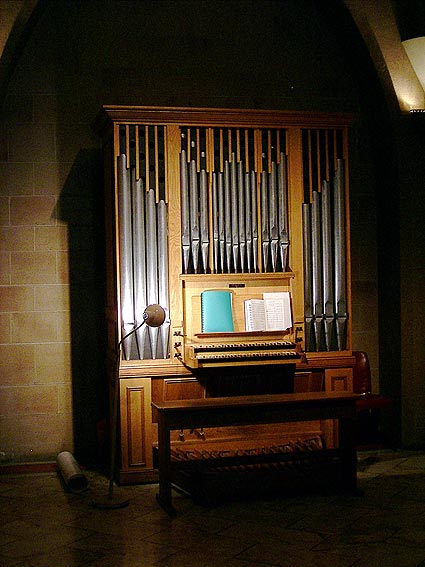

Orgue de la crypte / Crypt Organ

Bellsham Pipe Organs, 1985

  • 2 claviers manuels et pédalier / 2 manuals and pedal
  • 6 jeux / stops, 6 rangs / ranks
  • Traction mécanique des claviers et des jeux / Mechanical key and stop action

[cliquer sur l'image ou ici pour obtenir une version agrandie]
[click on the image or here to obtain a larger picture]


La cathédrale

Les orgues

[cliquer ici pour obtenir une version agrandie]


The Cathedral

The Organs

[click here to obtain a larger picture]


Composition sonore / Stop List
Orgue de transept / Transept Organ

II. Great

III. Swell
(expressif / enclosed)

1Bourdon16' 2Bourdon16'
Open Diapason8' Open Diapason8'
Harmonic Flute8' 1Stopped Diapason8'
Chimey Flute8' Viole de gambe8'
Violoncello8' 3Voix Celeste8'
Principal4' Principal4'
Waldflute4' Nachthorn4'
Twelfth2 2/3' Fifteenth2'
Fifteenth2' Mixture 2 2/3'V
Mixture 2'IV Double Trumpet16'
Sharp Mixture 1/2'III Cornopean8'
Trumpet8' Oboe8'
Tremulant
Clairon4'


Tremulant



I. Choir
(expressif / enclosed)

Pedal

2Stopped Diapason8' Contra Bourdon (ext)32'
Salicional8' Open Diapason16'
Principal4' Bourdon16'
Koppelflute4' Principal8'
Nazard2 2/3' Bass Flute8'
Blockflute2' Mixture 2 2/3'III
Tierce1 3/5' Trombone16'
Larigot1 1/3' Trumpet16'
Mixture 2'IV Clairon4'
Clarinet8'

4Tuba8'

Tremulant





Composition sonore / Stop List
Orgue de tribune / Gallery Organ

Great

Swell
(expressif / enclosed)

Double Diapason16' Bourdon16'
Open Diapason #18' Violin Diapason8'
Open Diapason #28' Lieblich Gedact8'
Stopped Diapason8' Salicional8'
Dulciana8' Vox Angelica8'
Octave4' Geigen Principal4'
Flute4' Piccolo2'
Twelfth2 2/3' MixtureIII
Fifteenth2' Cornopean8'
Trumpet8' Oboe8'


Tremulant



Pedal

Open Diapason16'
Violine (GT)16'
Bourdon (ext)16'
Echo Bourdon (SW)16'
Octave (ext)8'
Bass Flute8'
1Trombone (ext)16'




Composition sonore / Stop List
Orgue de choeur / Chancel Organ

Great

Positiv

Rohrflöte8' Gedact8'
Prinzipal8' Rohrpfeife4'
1Spitzflöte4' Prinzipal2'
Nasat2 2/3' Blockflöte2'
Hohlflöte2' Quint1 1/3'
RauschpfeifeII Octav1'
MixturIII-VI 1SesquialteraII
2Trompete8' CymbelII


1Krummhorn8'


Cimbelstern


1Tremulant



Pedal

SubBass16'
1,3Prinzipal8'
2Octav4'
1Nachthorn2'
1MixturIV
1Posaune16'
1Trompete8'
1Kornett2'




Composition sonore / Stop List
Orgue de la crypte / Crypt Organ

Manual I & II

Pedal

Quintade8' Sordun16'
Gedackt8'

Spitzflöte4'

Principal2'

Larigot1 1/3'

1Anche/Reed
